TG Series AGM GEL Battery

Wechat consulting

微信扫码咨询
Consult now 返回

Details

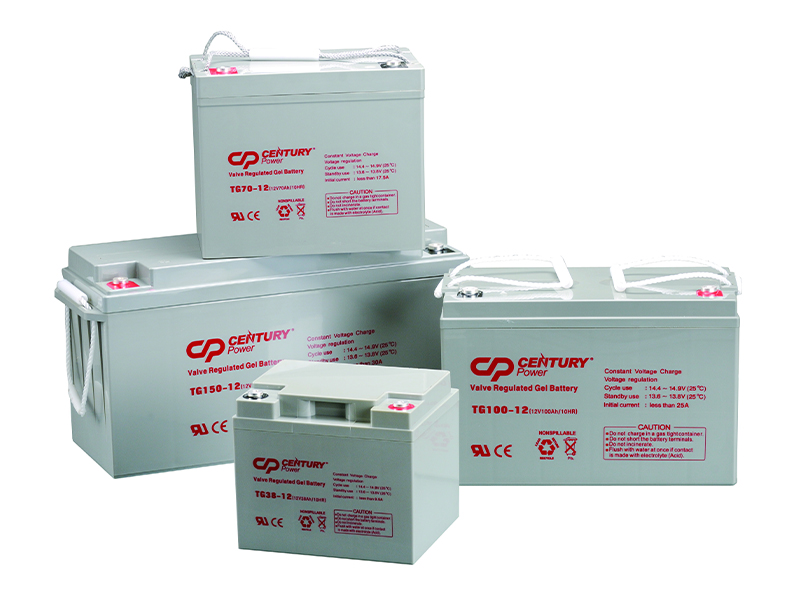

TG SERIES (GEL)


Design Life:>10 years
Voltage:6 & 12 Volts
Capacity:24Ah~250Ah
Rate:C10 to 1.8V/cell @25℃


* Electrolyte Uniform Distribution & No Leakage.
* Wider Working Environment.
* Good Discharging Ability.
* Low Self Discharge.
* Environmental & Non-polluting.
* Safe & Reliable.


Technical Features

TG Series (GEL) is pure GEL battery with 15~20 years floating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments.By using strong grids, high purity lead and patented Gel electrolyte, the TG series offers excellent recovery after deep discharge under frequent cyclic discharge use, and can deliver 400 cycles at 100% DOD. Suitable for solar,CATV, marine, RV and deep discharge UPS,communication , and telecommunication , etc.

Technical Specifications

Model Nominal Voltage Capacity   Size  Weight Terminal Layout
(Ah)  Length Width Height Total Height (Kg) (Lbs)
(V) mm inch mm inch mm inch mm inch
TG24-12AQ
12 24/10HR 165 6.49 126 4.96 174 6.85 179 7.04 7.8 17.19 L6 B

TG24-12ZT

12 24/10HR
165
6.49 126 4.96 174 6.85 174 6.85 7.8 17.19 T2 B
TG26-12ZT 12 26/10HR 166 6.53 175 6.88 126  4.96 126 4.96 8.4 18.51 T2 B
TG26-12AP 12 26/10HR 166 6.53 175 6.88 126 4.96 126 4.96
8.4 18.51 L2 B
TG33-12AQ
12 33/10HR 196 7.71 130 5.11 155 6.10 179 7.04 10.1 22.26 L7
A
TG33-12ZT 12 33/10HR 196 7.71 130 5.11 155 6.10 167  6.57 10.1 22.26 T3 A
TG33-12AP 12 33/10HR 196 7.71 131 5.15 155 6.10 179 7.04 10.1 22.26 L4 A
TG38-12AQ 12 38/10HR 197 7.75 166 6.53 174 6.85 179 7.04
12.4 27.33 L6 B
TG38-12AT 12 38/10HR 197 7.75 166 6.53 174 6.85 174 7.04
12.4 27.33
T3
B
TG38-12BQ 12 38/10HR 198 7.79 166 6.53 174 6.85 174 7.04
12.4 27.33
L7 B
TG38-12ZT 12 38/10HR 198 7.79 166 6.53 172 6.77 172 6.77 12.4 27.33
T3
B
TG38-12BP 12 38/10HR 198 7.79 166 6.53
172 6.77 172 6.77 12.4 27.33
L3 B
TG42-12AQ 12 42/10HR 198 7.79 166 6.53
174 6.85 174 7.04
13 28.66 L7
B
TG42-12ZT 12 42/10HR 198 7.79 166 6.53
174 6.85
174 7.04
13 28.66
T3 B
TG42-12AP 12 42/10HR 198 7.79 166 6.53
172 6.77 172 6.77 13 28.66
L3
B
TG50-12AQ 12 50/10HR 258 10.15 134 5.27 200 7.87 200 7.87 15.6 34.39 L3 A
TG50-12BT 12 50/10HR 229 9.01 138 5.43 208 8.18 212 8.34 15.9 35.05 T3 A
TG55-12AP 12 55/10HR 229 9.01 138 5.43
208 8.18 226 8.89 16.4 36.15 L3 A
TG55-12AT 12 55/10HR 229 9.01 138 5.43
208 8.18 212 8.34 16.4 36.15 L3 A
TG56-12AQ 12 56/20HR 350 13.77 167 6.57 178 7.00 178 7.00 17.3 38.13 L9 A
TG56-12AT 12 56/20HR 350 13.77 167 6.57 178 7.00 178 7.00 17.3 38.13 T2 A
TG58-12AT 12 58/10HR 229 9.01 138 5.43 208 8.18 212 8.34 17.4 38.36 T3 A
TG65-12AQ 12 65/10HR 350 13.77 167 6.57 178 7.00 178 7.00 20.3 44.75 L9 B
TG65-12AT 12 65/10HR 350 13.77
167 6.57
178 7.00 178 7.00 20.3 44.75
T3 B
TG65-12BP 12 65/10HR 350 13.77
167 6.57
178 7.00
178 7.00 20.3 44.75
L4 A
TG65-12BT 12 65/10HR 350 13.77
167 6.57
178 7.00
178 7.00 20.6 45.41 T3 A
TG70-12AQ
12 70/10HR
350
13.77
167
6.57
178
7.00
178
7.00 21.4
47.17 L9
B
TG70-12AT
12 70/10HR
350
13.77
167
6.57
178
7.00
178
7.00 21.4
47.17
T3
B
TG70-12BT
12 70/10HR
260
10.23 169
6.65 211
8.30 215
8.46 21.8
48.06 T3
A
TG70-12BQ
12 70/10HR
260
10.23
169
6.65 211
8.30
231
9.09 21.8
48.06
L11
A
TG75-12AT
12
75/10HR
260
10.24
169
6.65 211
8.31 215
8.46 22.2
48.94 T3
A
TG75-12AQ
12
75/10HR
260
10.24 169
6.65 211
8.31 231
9.09 22.2
48.94 L11
A
TG80-12AQ
12
80/10HR
331
13.03 174
6.85 214
8.43 240
9.45 25
55.12 L12
B
TG80-12AT
12
80/10HR
331
13.03 174
6.85 214
8.43 219
8.62 25
55.12 T4
B
TG80-12BT
12
80/10HR
260
10.24 169
6.65 211
8.31 215
8.46 23.5
51.81 T3
A
TG80-12BQ
12
80/10HR
260
10.24 169
6.65 211
8.31
231
9.09 23.5
51.81 L11
A
TG80-12BP
12
80/10HR
260
10.24 169
6.65 211
8.31
231
9.09 23.5
51.81 L4
A
TG90-12AQ
12
90/10HR
307
12.09 169
6.65 211
8.31
227
8.94 26.7
58.86 L13
A
TG90-12AT
12
90/10HR
307
12.09 169
6.65 211
8.31
215
8.46 26.7
58.86 T3
A
TG90-12BQ
12
90/10HR
331
13.03 174
6.85 214
8.43 240
9.45 28
61.73 L12
B
TG90-12BT
12
90/10HR
331
13.03 174
6.85 214
8.43
219
8.62 28
61.73 T4
B
TG95-12AQ
12
95/10HR
407
16.02 174
6.85 210
8.27 233
9.17 29.7
65.48 L14
A
TG95-12AT
12
95/10HR
407
16.02 174
6.85 210
8.27 233
9.17 29.7
65.48 T5
A

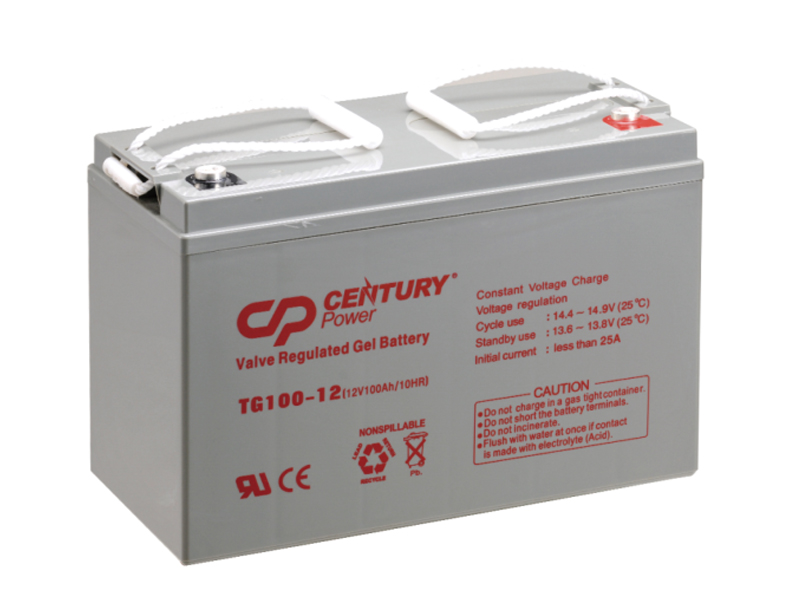

TG100-12AQ
12
100/10HR
331
13.03 174
6.85 214
8.43
240
9.45 29.2
64.37 L12
B
TG100-12AT
12
100/10HR
331
13.03 174
6.85 214
8.43
219
8.62 29.2
64.37 T4
B
TG100-12BT
12
100/10HR
328
12.91 172
6.77 217
8.54 222
8.74 29.2
64.37 T4
A
TG100-12DQ
12
100/10HR
407
16.02 174
6.85 210
8.27 233
9.17 33.2
73.19 L14
A
TG100-12DT
12
100/10HR
407
16.02 174
6.85 210
8.27 233
9.17 33.2
73.19 T5
A
TG100-12EP
12
100/10HR
328
12.91 172
6.77 222
8.74 222
8.74 29.7
65.48 L5
A
TG100-12FT
12
100/10HR
331
13.03 174
6.85 214
8.43 219
8.62 29.2
64.37 T4
A
TG100-12LQ
12
100/10HR
331
13.03 174
6.85 214
8.43 240
9.45 30.7
67.68 L12
B
TG100-12LT
12
100/10HR
331
13.03 174
6.85 214
8.43 219
8.62 30.7
67.68 T4
B
TG120-12AQ
12
120/20HR
331
13.03 174
6.85 214
8.43 240
9.45 32.5
71.65 L12
B
TG120-12AT
12
120/20HR
331
13.03 174
6.85 214
8.43 219
8.62 32.5
71.65 T4
B
TG120-12BQ
12
120/10HR
407
16.02 174
6.85 210
8.27 233
9.17 34.4
75.84 L14
A
TG120-12BT
12
120/10HR
407
16.02 174
6.85 210
8.27 233
9.17 34.4
75.84 T5
A
TG120-12CQ
12
120/10HR
484
19.05 171
6.73 241
9.49 241
9.49 38.2
84.22 L15
A
TG120-12CT
12
120/10HR
484
19.05 171
6.73 241
9.49 241
9.49 38.2
84.22 T4
A
TG145-12AQ
12
145/20HR
532
20.94 206
8.11 212
8.35 236
9.29 41.6
91.71 L17
C
TG145-12AT
12
145/20HR
532
20.94 206
8.11 212
8.35 217
8.54 41.6
91.71 T4
C
TG150-12AQ
12
150/10HR
484
19.06 171
6.73 241
9.49 241
9.49 43.7
96.34 L15
A
TG150-12AT
12
150/10HR
484
19.06 171
6.73 241
9.49 241
9.49 43.7
96.34 T4
A

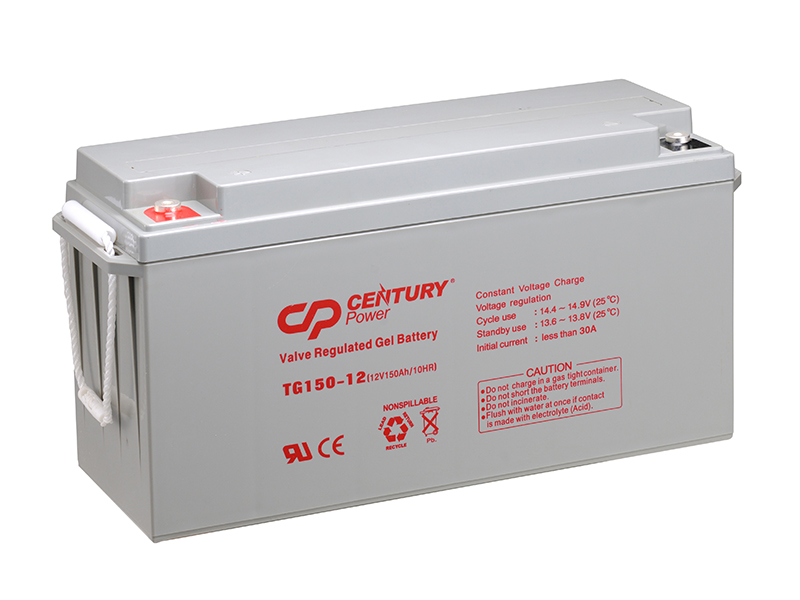

TG150-12SQ
12
150/20HR
484
19.06 171
6.73 241
9.49 241
9.49 41.2
90.83 L15
A
TG150-12ST
12
150/20HR
484
19.06 171
6.73 241
9.49 241
9.49 41.2
90.83 T4
A
TG160-12AQ
12
160/10HR
532
20.94 206
8.11 216
8.50 240
9.45 48.5
62.83 L17
C
TG160-12AT
12
160/10HR
532
20.94 206
8.11 216
8.50 222
8.74 48.5
62.83 T4
C
TG180-12AQ
12
180/10HR
500
19.69 208
8.19 212
8.35 239
9.41 55.2
121.70 L16
C
TG180-12ZT
12
180/10HR
532
20.94 206
8.11 216
8.50 222
8.74 52.4
115.52 T4
C
TG180-12CQ
12
180/10HR
522
20.55 240
9.45 219
8.62 244
9.61 55.6
122.58 L17
C
TG180-12CT
12
180/10HR
522
20.55 240
9.45
219
8.62 224
8.82 55.6
122.58 T5
C
TG200-12AQ
12
200/10HR
522
20.55 240
9.45
219
8.62 244
9.61 58.5
129.19 L17
C
TG200-12ZT
12
200/10HR
522
20.55 240
9.45
219
8.62
224
8.82 58.5
129.19 T5
C
TG220-12AQ
12
220/20HR
522
20.55 240
9.45
219
8.62
244
9.61 60.8
134.04 L17
C
TG220-12AT
12
220/20HR
522
20.55 240
9.45
219
8.62
224
8.82 60.8
134.04 T5
C
TG220-12BT
12
220/10HR
520
20.47 269
10.59 203
7.99 209
8.23 68.3
150.58 T5
C
TG250-12AQ
12
250/10HR
520
20.47 268
10.55 220
8.66 245
9.65 70.3
154.98 L17
C
TG250-12AT
12
250/10HR
520
20.47 268
10.55 220
8.66 225
8.86 70.3
154.98 T5
C
TG130-6AT
6
130/10HR
260
10.24 180
7.09 247
9.72 251
9.88 20.6
45.42 T5
F
TG180-6AT
6
180/10HR
260
10.24 180
7.09
247
9.72 251
9.88 27.6
60.85 T5
F
TG180-6BT
6
180/10HR
306
12.05 168
6.61 220
8.66 225
8.86 26.1
57.54 T5
F
TG200-6AT
6
200/10HR
260
10.24 180
7.09 247
9.72 251
9.88 29.6
65.26 T5
F
TG200-6BT
6
200/10HR
323
12.72 178
7.01 224
8.82 229
9.02 29.6
65.26 T5
E
